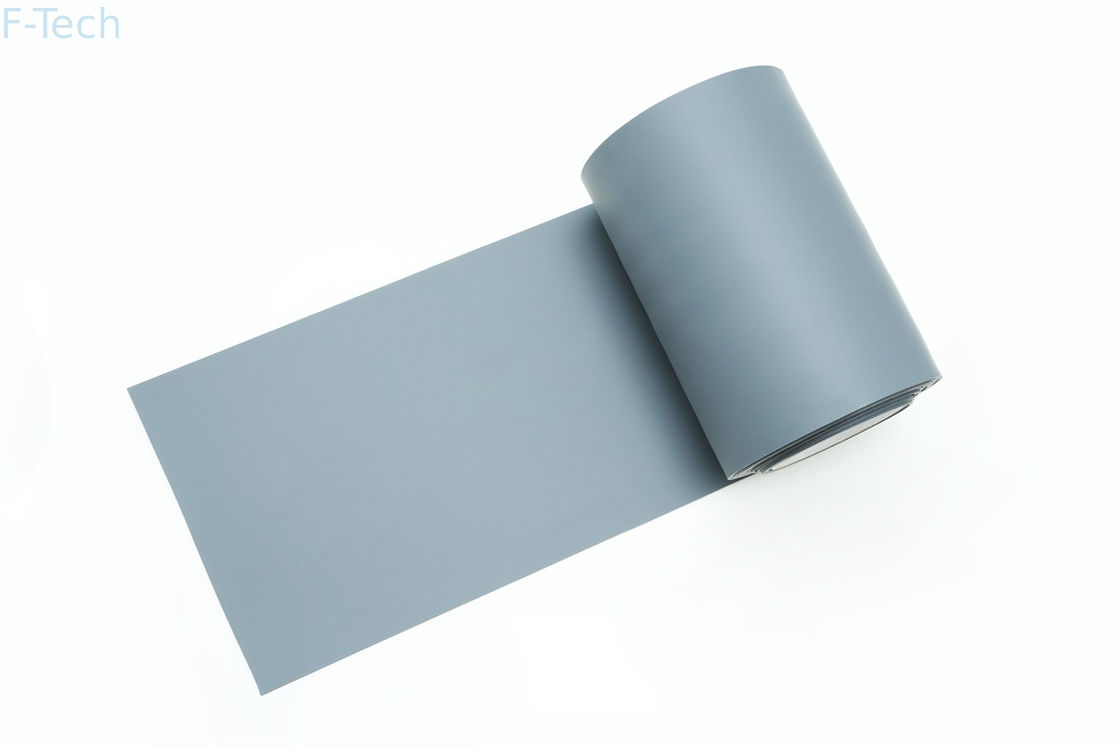

OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet
  • OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet
  • OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet
  • OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet
  • OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet
  • OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet
OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet

OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number Rubber 1
Product Details
Material:
High Flame Retardant Silicone Rubber(buffer Frame)
Temperature Range:
-50°C To +240°C (continuous)
Color:
Gray
Sample:
Available
Highlight:

ODM Battery Thermal Wrap

,

Electrically Conductive Silicone Rubber Sheet

,

Flame Barrier Silicone Rubber Sheet

Payment & Shipping Terms
Minimum Order Quantity
Customized
Price
Fuzhou Fuqiang Precision Co.,Ltd.
Packaging Details
pp bag+Cartons
Delivery Time
1000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000pcs/day
Product Description

Battery Wrapping Flame Barrier Films High flame retardant silicone rubber battery thermal wrap

Main Features

It is used to realize buffering energy absorption between battery pack cells.

  • Jelly Roll Insulation
  • Top Cap Insulation
  • Separator Papers
  • Tab & Lead insulation
  • Pouches
  • Thermal Insulation
  • Thermal Runaway Protection
  • Go-Therm Thermal Runaway Barrier



OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet 0



Specification

The main performance parameters are shown in Table

Serial number Test items Unit Test Standard SR No.
SR 35-A SR 40-A SR 50-A SR 60-A
1 Hardness Shore A GB/T531.1-2008 35±7 40±10 50±10 60±10
2 Density g/cm3 4.3.2 0.8≤μ±3σ≤1.4 1.00≤μ±3σ≤1.51 1.00≤μ±3σ≤1.51 1.1≤μ±3σ≤1.5
3 25℃ Compression curve MPa GB/T 7757-2009 10%:0.12≤μ±3σ≤0.22 10%:0.25≤μ±3σ≤0.53 10%:0.25≤μ±3σ≤0.75 10%: 0.45≤μ±3σ≤0.80
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%:0.63≤μ±3σ≤1.77 20%: 0.95≤μ±3σ≤1.45
30%:0.45≤μ±3σ≤0.7 30%:0.68≤μ±3σ≤1.32 30%:1.20≤μ±3σ≤2.24 30%: 1.50≤μ±3σ≤2.50
4 25℃ Shear performance under pressure     Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
5 25℃ Tensile strength MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
6 -30℃ Compression curve MPa GB/T 7757-2009 10%:0.08≤μ±3σ≤.0.22 10%:0.25≤μ±3σ≤0.53 10%:0.35≤μ±3σ≤0.65 10%:0.55≤μ±3σ≤0.90
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%:0.90≤μ±3σ≤1.20 20%:1.10≤μ±3σ≤1.95
30%:0.45≤μ±3σ≤0.9 30%:0.68≤μ±3σ≤1.32 30%:1.50≤μ±3σ≤2.00 30%: 2.00≤μ±3σ≤3.95
7 -30℃ Shear performance under pressure     Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
8 -30℃ Tensile strength MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
9 60℃ Compression curve MPa GB/T 7757-2009 10%:0.12≤μ±3σ≤0.22 10%:0.25≤μ±3σ≤0.53 10%:0.35≤μ±3σ≤0.70 10%: 0.35≤μ±3σ≤0.80
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%:0.80≤μ±3σ≤1.30 20%:0.65≤μ±3σ≤1.60
30%:0.45≤μ±3σ≤0.7 30%:0.68≤μ±3σ≤1.32 30%:1.00≤μ±3σ≤2.10 30%: 1.00≤μ±3σ≤2.50
10 60℃ Shear performance under pressure     Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
11 60℃ Tensile strength MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
12 Double 85 post-aging compression curve MPa GB/T 7757-2009 10%:0.12≤μ±3σ≤0.22 10%:0.25≤μ±3σ≤0.53 10%: 0.50≤μ±3σ≤0.70 10%: 0.40≤μ±3σ≤1.90
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%: 0.90≤μ±3σ≤1.30 20%: 1.00≤μ±3σ≤3.20
30%:0.45≤μ±3σ≤0.75 30%:0.68≤μ±3σ≤1.32 30%: 1.40≤μ±3σ≤2.10 30%: 1.70≤μ±3σ≤5.50
13 Double 85 post-aging shear performance under pressure     Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
14 Double 85 post-ageing Tensile strength MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
15 Compression curve after high and low-temperature cycle MPa GB/T 7757-2009 10%:0.12≤μ±3σ≤0.22 10%:0.25≤μ±3σ≤0.53 10%: 0.45≤μ±3σ≤0.65 10%: 0.50≤μ±3σ≤2.20
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%: 0.85≤μ±3σ≤1.35 20%: 1.00≤μ±3σ≤4.00
30%:0.45≤μ±3σ≤0.7 30%:0.68≤μ±3σ≤1.32 30%: 1.30≤μ±3σ≤2.50 30%: 1.80≤μ±3σ≤6.80
16 Shear performance under pressure after high and low temperature MPa ASTM C273C /273M-16 Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
17 Tensile strength after high and low-temperature cycle MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
18 Flame retardant / UL94 UL94 V0(2mm) V0(t≥2mm) V0(t≥2mm) V0(t≥2mm)
V1(1≤t＜2mm) V1(1≤t＜2mm) V1(1≤t＜2mm)
HB(0.4≤t＜1mm) HB(0.4≤t＜1mm) HB(0.4≤t＜1mm)
19 Forbidden object / RoHS &REACH & ELV RoHS &REACH & ELV RoHS &REACH & ELV RoHS &REACH & ELV RoHS &REACH & ELV
20 Insulation MΩ 1000V DC 60s µ-3σ≥500 µ-3σ≥500 µ-3σ≥500 µ-3σ≥500
21 Impedance mA 2700V DC 60s µ+3σ≤1 µ+3σ≤1 µ+3σ≤1 µ+3σ≤1
22 Thermal conductivity W/(m·K) GB/T 10295-2008 µ+3σ≤0.8 µ+3σ≤0.8 µ+3σ≤0.8 µ+3σ≤0.8
23 Specific heat capacity J/(g·K) ASTM E1269-2011 µ-3σ≥0.9 µ-3σ≥0.9 µ-3σ≥0.9 µ-3σ≥0.9
24 Stress retention rate % GB/T1685-2008 ≥40 ≥40 ≥40 ≥40
25 25℃ Shear strength with double-sided adhesive MPa ASTM D1002 Min≥0.8 Min≥0.8 Min≥1.1 Min≥1.5
26 -30℃ Shear strength with double-sided adhesive MPa ASTM D1002 Min≥0.6 Min≥0.8 Min≥1.1 Min≥1.5
27 60℃ Shear strength with double-sided adhesive MPa ASTM D1002 Min≥0.6 Min≥0.8 Min≥0.6 Min≥1.5
28 Double 85 ageing shear strength with double-sided adhesive MPa ASTM D1002 Min≥0.6 Min≥0.8 Min≥1.1 Min≥1.5
29 Shear strength after high and low-temperature cycles with double-sided adhesive MPa ASTM D1002 Min≥0.6 Min≥0.8 Min≥1.1 Min≥1.5





  • Available in – Continuous rolls or cut sheets
  • Durometers available – 70
  • Thicknesses available (in) – 0.0625 to 0.25
  • Typical roll lengths (ft) – 50 to 100
  • Typical roll widths (in) – 36 & 48
  • Surface finishing – Smooth finish, both sides
  • Color – Black



Typical Applications

  • Ev Battery Pack Structure is Fireproof and Insulated;
  • Aerospace Cargo Fire Covers;
  • A Protective Layer of the Brake Line of Railway Vehicles;
  • Fire Barrier Between Railway Passenger Cars.
Package & Delivery

OEM ODM Flame Barrier Electrically Conductive Silicone Rubber Sheet 1
