Battery Thermal Management System
>
|
|
| Place of Origin | China |
| Brand Name | FQ |
| Certification | IATF16949 |
| Model Number | Aerogels 01 |

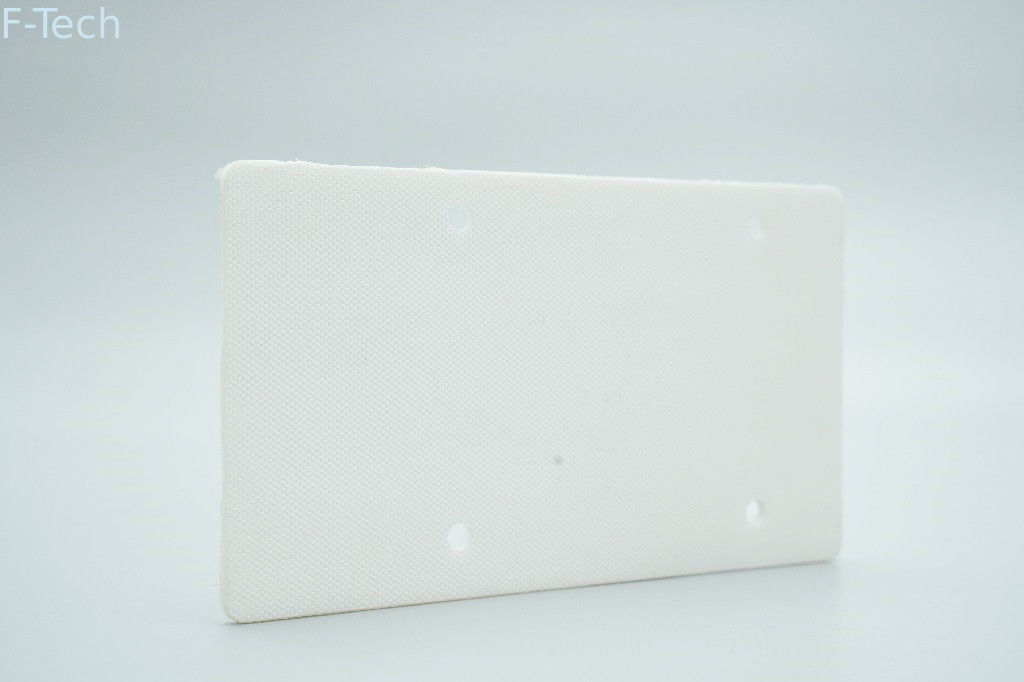

Battery Thermal Management System Aerogel Insulation Ceramic Fiber Aerogel Felt flame retardancy
Aerogels have the characteristics of low thermal conductivity, good thermal insulation effect and non-combustible. Compared with traditional insulation materials, it only needs 1/5-1/3 thickness to achieve the same insulation effect. It not only saves more space for the power battery but also has the characteristics of a heat preservation effect and a more stable temperature. Therefore, the application in new energy vehicles can better realize the temperature control and electronic control management of the battery and improve the performance, it can play the role of heat insulation and fire prevention, and buy more time for users and passengers to escape the scene and extinguish the fire.
The main performance parameters are shown in Table
| No. | Subuject | Description | |
| 1 | Product Model | Pysheild BP-CF | |
| 2 | Thickness | 1~10mm | |
| 3 | Wide | 1400±60mm (Customizable) | |
| 4 | Colour | White | |
| 5 | Maximum Operating Temperature | 650℃ | |
| 6 | Density | 280±30kg/m3 | |
| 7 | Thermal Conductivity | ≤0.023W/m*K@25℃ | GB/T 10295-2008 |
| ≤0.030W/m*K@100℃ | GB/T 10294-2008 | ||
| ≤0.036W/m*K@300℃ | |||
| ≤0.072W/m*K@500℃ | |||
| 8 | Combustion Rating | A - Level | GB/T 8624-2012 |
| V0 | UL94-2013 | ||
| 9 | Water Repellency | ＞98% | GB/T10299-2011 |
| 10 | Biosecurity | Meets biosafety requirements | RoHs/REACH/ELV |
| 11 | Burn-through Resistance | 3mm:＞120min | Butane spray gun external flame burning |
| 12 | Thermal Insulation Effect | 1mm:Min≥385℃；2mm:Min≥440℃ 3mm:Min≥495℃；4mm:Min≥520℃ |
|
| 13 | Application Areas | The functions of heat insulation, buffering, flame retardancy, thermal runaway protection and other functions of new energy passenger vehicle cells and modules | |
Typical Applications
The functions of heat insulation, buffering, flame retardancy, thermal runaway protection and other functions of new energy passenger vehicle cells and modules
