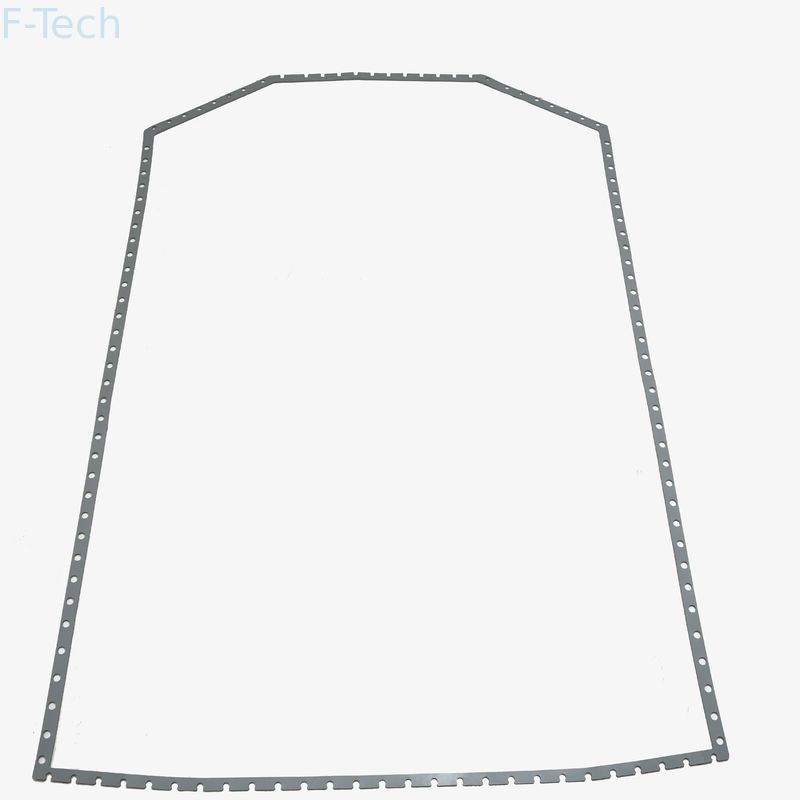

Battery Used Rectangular Rubber Gasket
  • Battery Used Rectangular Rubber Gasket
  • Battery Used Rectangular Rubber Gasket
  • Battery Used Rectangular Rubber Gasket
Battery Used Rectangular Rubber Gasket

Battery Used Rectangular Rubber Gasket

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number BPS-02
Product Details
Material:
Customized
Sized:
Customized
Tape:
Double-sided Adhesive
Requirements For Flame Retardant Grade:
Customized
Appearance Requirements:
Smooth Surface, No Damage, Scratches, Lack Of Material, Obvious Defects And Other Defects
Highlight:

Battery Used Rectangular Rubber Gasket

,

Battery Used rectangular rubber seal

Payment & Shipping Terms
Minimum Order Quantity
Customized
Price
USD 45/PC
Packaging Details
pp bag+Cartons
Delivery Time
1000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000pcs/day
Product Description
Products Description



  • 1. Material: 100% silicone sponge strips, non-toxic, soft and comfortable
  • 2. Size: standard or according to your requirement
  • 3. Color: various color available, any colour of Pantone colour chat can be customized
  • 4. long life and strong abrasion resistance, ageing resistance, flame resistance, weather ability,etc.
  • 5. excellent resistant to ozone, oxygen, mineral,oil, synthetic hydraulic fluid, fuels,solvents&chemicals.
  • 6. high and low-temperature resistance



F-TECH-FSR370 is a low-stress silicone foamed silicone material. It has a low density and excellent resistance to compression set. Compared with traditional carbon-based foam materials, the material has excellent high and low-temperature resistance (-55-200 °C), high flame retardant (V-0), extremely low smoke density and smoke toxicity. In addition, the material has excellent ageing and weather resistance, making it ideal for all types of shock absorption, cushioning, support, sound insulation, protection, insulation and fire protection.





Main Features
  1. Excellent flame retardancy and fire resistance;
  2. Excellent compression set resistance and creep resistance;
  3. Excellent heat and cold resistance, continuous operation from -55°C to 200°C;
  4. Good insulation, and green environmental protection
Specification
SN TEST UNITES Testing standards Technical indicators
1 Density g.cm-3 ASTM D 1056 0.37±0.04
2 Hardness kPa ASTM D 1056 75 ± 20
3 Compression set % ASTM D 1056 @100℃ ≤ 5.0
4 Tensile strength MPa ASTM D412-16 ≥ 0.3
5 Elongation % ASTM D412-16 ≥ 80
6 Water absorption % ASTM D 570 ≤ 5.0
7 Environmental testing / RoHS,REACH,ELV OK
8 Flame retardant / UL94-2013 V-0
9 Low temperature bending / ASTM D 1056 -55℃OK
10 Dielectric strength kV/mm ASTM D149-09 ≥ 2.5
11 Volume resistivity Ω·cm ASTM D257-14 ≥ 1.0*1014
12 Thermal conductivity W/(m·K) ASTM C518-17 0.08±0.01





Compressive stress curve

Battery Used Rectangular Rubber Gasket 0

Application

Battery Used Rectangular Rubber Gasket 1

Package & Delivery

Battery Used Rectangular Rubber Gasket 2
It is a non-dangerous good. Store it in a cool, dry place below 27°C.
