Production Description



Plastic Injection Mould making
1.Samples/Drawing &Requirement from you
2.Mould design:we will Communicate and Exchange the opinion with you after you place order.
3.Material Purchase:Steel cutting and Mould base tooling.
4.Assembling.
5.Inspection of mould : following and controlling the tooling processing.
6.Mould testing:We will inform you the date.Than will send the sample's inspection report&injection parameters with the sample to you!
7.Your instruction &confirmation for shipment.
8.Ready made mould before packing.
9.We provide any differeny kinds of plastic injection mould, blow mould, silicone mould, die casting mould service.
Plastic molding Specification
1. Professional manufacturer,design,production injection mould and stamping mould quality control
2. rich export experience plastic injection mould and stamping mould
3. Reasonable price of design mould
4. Cavities: single or as per your requirements cavity
5. Treatment: S45C Pretreat>25Hrc,And Nitriding
6. Mould Steel: Cavity ,Core and slide: P20 ,2738,2136 available Moldbase :LKM available
7. Standard:DEM ,HUSKY,available
8. Hot runner: according to your demand
9. Life time: >300 Thousand Times
10. Package: Plywood case, anti-rust paint

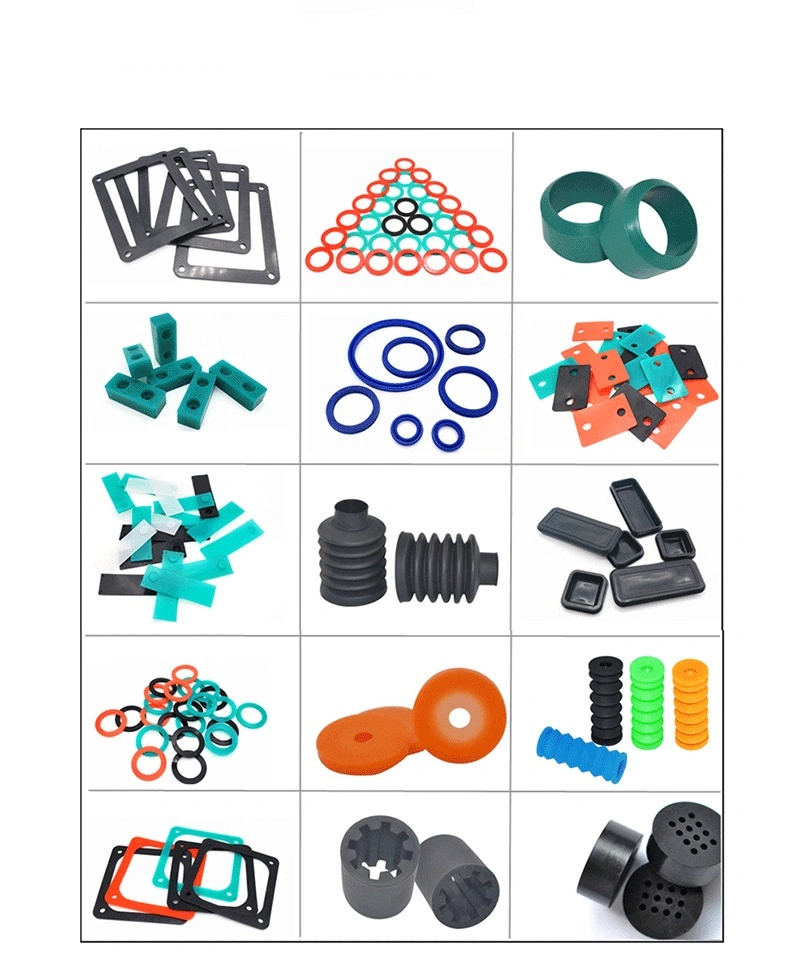

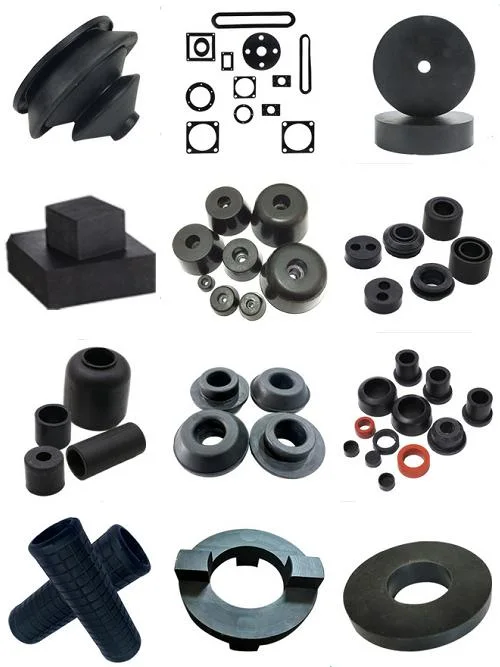

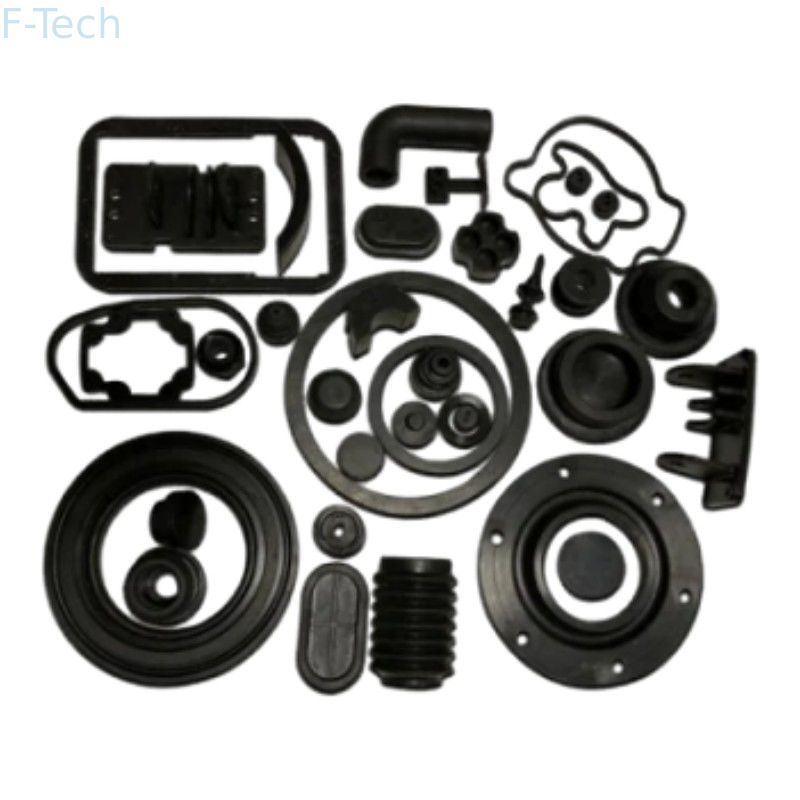

The property and advantage of rubber gasket
1.smooth surface without any burr
2.super sealing performance, for blocking water, wind, dust, noise outside
3.Weather resistant(Ozone, UV, freezing cold, sunlight)
4.excellent flexibility and anti-deformation
5.Widely temperature range(~40~300ºC)
6.Chemical and water resistance

The property of various of material for Rubber gasket is as below,
1. the property of NR
It has good wear resistance, high elasticity, breaking strength and elongation, But in the air, it is easy to get age, and it is get sticky when it get in touch with heat, which is easy to expand and dissolve in mineral oil or gasoline, but it is resistant to strong acid, but not to Alkali . working temperature is -50~70ºC.
2. the property of EPDM
Weather ability, aging resistance, ozone resistance, chemical stability are excellent, and CFCS and a variety of refrigerants. Working temperature is -50~150
3. the property of silicone
It has excellent heat resistance, cold resistance, ozone resistance and atmospheric aging resistant.Good electrical insulation performance,The tensile strength and wear resistance are generally poor and has non- oil resistant. The working temperature is -55~250ºC
4. The property of NBR
Good oil resistance, heat resistance, abrasion resistance, solvent resistance and high - pressure oil,But it is not suitable for polar solvents, such as ketones, ozone, nitro-hydrocarbons, and chloroform. The working temperature is -40~120 ºC
5. the property of CR
It has good elasticity, wear resistance and atmospheric aging resistance. It is not afraid of violent distortion and flammability.Chemical stability. The working temperature is -40~100 ºC
6. The property of FKM
Excellent high temperature resistance,And have excellent chemical resistance, most oil and solvent (other than ketones and esters).cold resistance is not good.
6. The property of PU
High strength, excellent wear resistance, good oil resistance and solvent resistance,,In particular, it has good anti-swelling properties for lubricating oil and fuel oil,Good ozone resistance. But it's not high temperature. The working temperature is -45~110 ºC.
