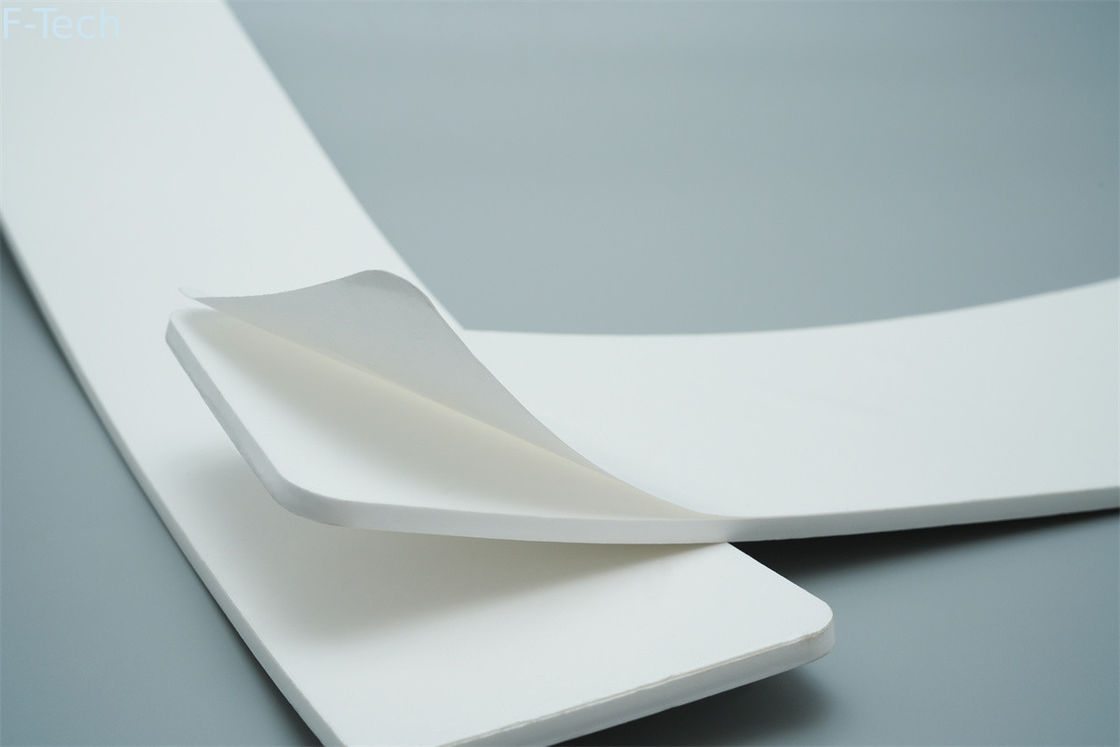

Lifepo4 Battery Management System Microcellular PP Foam Anti Vibration Pads

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number MPP 01
Product Details
Material:
Flame-retardant Microcellular PP Foam
Type:
Li-Ion,LiFePo4,LiFePO4 Battery Management System(Battery BMS/PCM) 30S 150A,li Ion Battery BMS,LFP Car Cell
Board Thickness:
1.6mm,0.005"-0.250",17mm,0.6-0.8mm
Base Material:
FR-4,Glass Fiber,Li-ion/LiFePO4
Size:
Prismatic,803*512*422,342*173*212mm,60*64*21mm
Weight:
76kg,4kg,Approx 12.5KG,82kg
Surface Finishing:
HASL
Highlight:

Lifepo4 Battery Management System PP Foam pad

,

PP Foam Anti Vibration Pads

,

Microcellular Foam Anti Vibration Pads

Payment & Shipping Terms
Minimum Order Quantity
Customized
Price
Fuzhou Fuqiang Precision Co.,Ltd.
Packaging Details
pp bag+Cartons
Delivery Time
1000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000pcs/day
Product Description
Description

Flame-retardant polypropylene microcellular foam (MPP) is a porous foam material made by using polypropylene (PP) as the substrate to form a large number of micron-sized bubbles in the body through clean supercritical carbon dioxide technology.





MPP foam is a closed-cell foam made from polypropylene beads that provides exceptional thermal insulation, low thermal conductivity, and excellent temperature stability. As a battery insulation material, MPP foam is highly suitable for NEV batteries, which require stable operating temperatures to ensure optimal performance and safety.



MPP foam is available in various densities and can be customized to meet the specific thermal protection requirements of different NEV battery applications. With its low thermal conductivity and excellent insulation performance, MPP foam ensures that NEV batteries maintain a stable operating temperature, reducing the risk of overheating or damage to the battery.



MPP foam also has excellent fire protection properties, classified as UL94 V-0, indicating its outstanding resistance to ignition and non-propagation of flames once the ignition source is removed. These fire protection properties make MPP foam an ideal material for NEV battery applications, helping to prevent the spread of fire and improve overall safety. In the event of a fire, MPP foam can help to contain the flames and extinguish them, reducing the risk of damage and injury.



Ingredients
Polypropylene resin, flame retardant, air (Note: The CO2 gas in the bubble has been replaced by air before leaving the factory)
Fetures
  • Light weight and high strength
  • Clean and environmentally friendly
  • Good buffer protection performance
  • Good surface protection properties
  • Good waterproof performance
  • Good thermal insulation performance
  • Good chemical resistance
  • Recyclable
Specification

The main performance parameters are shown in Table

Property Name Unit MPP25
Index
Test Standard
Colour / CMYK 0~20(White) PANTONE
Density kg/m3 36±5 initial Thickness Detection Using The Mitutoyo 547-301 Thickness Gauge; By Weight, Volume
Calculate Density;
Compression Curve MPa 10%:0.11≤σ≤0.24
20%
:0.14≤σ≤0.34
30%
:0.17≤σ≤0.38
40%
:0.22≤σ≤0.42
50%
:0.28≤σ≤0.47
60%
:0.34≤σ≤0.54
70%
:0.44≤σ≤0.67
compression Rate 2mm/min 0.02~8mpa Compression Curve
Sample Size
50*50*2mm
Tensile Strength MPa ≥1.3 ASTM-D3 574- 08
5mm/min (stretch Rate)
Tensile Modulus MPa ≥2.8
Shear Strength MPa ≥1.1 astm C273c
273m 5mm/min
(shear Rate)
Shear Stiffness MPa/ mm ≥0.6 astm C273c
273m 5mm/min
(shear Rate)
Shear Modulus MPa ≥1.2 astm C273c
273m 5mm/min
(shear Rate)
low-Temperature Stretching
-30
MPa ≥1.2 astm-d3574- 08
5mm/min (stretch
Rate)
high-Temperature Stretching
60
MPa ≥1.0 astm-d3574- 08
5mm/min (stretch
Rate)
Double 85 Stretched After Aging MPa >1.2 astm-d3574- 08
5mm/min (stretch
Rate)
coefficient Of Friction Of Mpp To Blue Film / 0.181≤μs≤0.577
0.112≤μk≤0.535
Gb 10006-88
Roughness μm 5~40 gb/t
1031-2009
Flame Retardant / UL94 HF-1(厚度 10mm) Ul94
Prohibited Objects / RoHS Rohs
Insulation Resistance ≥500 1000v Dc 60s
  mA 1 2700v/60s
Thermal Conductivity W/(m
·)
≤0.05 gb/t
10295-2008
Specific Heat Capacity J/(kg·
)
1880±200 (@0℃)
2235±200 (@40℃)
2680±200 (@80℃)
Astm E1269-2011
Hard Stiffness mm ≤50 "The sample (250*50*2mm) is placed flat on the high platform, 50mm at one end is fixed on the platform, and the other end is 200mm suspended to detect the suspended end
End sag height"
Compressive Stress Retention Rate / ≥20% compress 50% Hold
30 Days, Detect Pressure Changes
Flatness mm ≤4 dimensions: 100*150 Mm





Typical Applications

  • The functions of heat insulation, buffering, flame retardancy,
  • Thermal runaway protection and
  • New energy passenger vehicle cells and modules
