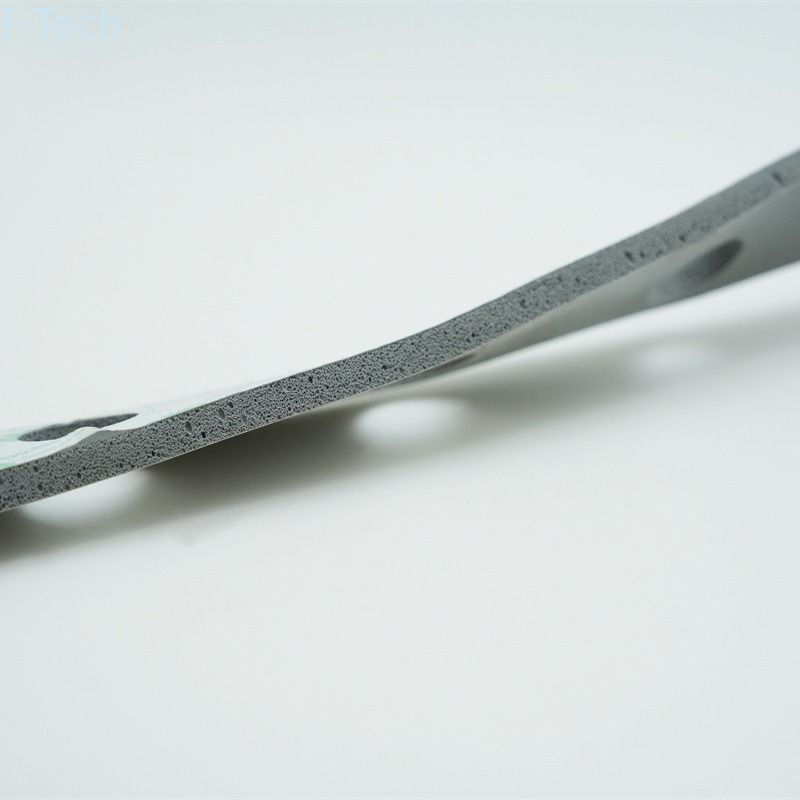

Battery Pack Sealing Self Adhesive Rubber Seal
  • Battery Pack Sealing Self Adhesive Rubber Seal
  • Battery Pack Sealing Self Adhesive Rubber Seal
  • Battery Pack Sealing Self Adhesive Rubber Seal

Battery Pack Sealing Self Adhesive Rubber Seal

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number BPS-02
Product Details
Material:
Customized
Sized:
Customized
Tape:
Double-sided Adhesive
Requirements For Flame Retardant Grade:
Customized
Appearance Requirements:
Smooth Surface, No Damage, Scratches, Lack Of Material, Obvious Defects And Other Defects
Highlight:

Battery Sealing Self Adhesive Rubber Seal

,

Self Adhesive Rubber Seal IATF16949

Payment & Shipping Terms
Minimum Order Quantity
Customized
Price
USD 45/PC
Packaging Details
pp bag+Cartons
Delivery Time
1000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000pcs/day
Product Description
Products Description

F-TECH-FSR420 is a low-stress silicone foamed silicone material. It has a low density and excellent resistance to compression set. Compared with traditional carbon-based foam materials, the material has excellent high and low-temperature resistance (-55-200 °C), high flame retardant (V-0), extremely low smoke density and smoke toxicity. In addition, the material has excellent ageing and weather resistance, making it ideal for all types of shock absorption, cushioning, support, sound insulation, protection, insulation and fire protection.

Battery Pack Sealing Self Adhesive Rubber Seal 0Battery Pack Sealing Self Adhesive Rubber Seal 1



Main Features



  1. Wide operating temperature – silicone foam has a temperature range of -67°F to 392°F (-55°C to 200°C).
  2. Water sealing – closed cell products offer good water sealing with relatively low compressive forces.
  3. Dust sealing – open cell and closed-cell products can be used for sealing out dust with low compressive forces.
  4. Compression set resistance – silicone foam offers excellent compression set resistance (ability to rebound to original
  5. thickness).
  6. UV and ozone resistance – silicone products have excellent UV and ozone resistance due in part to their inorganic backbone. This provides long-term performance.
  7. UL gasket – most silicone foam products are UL 94 flame rated for the gasket.



Product Material
Silicone Foam(density) 0.25-0.85g/cm"3
Temperature
performance
-40 ~+200℃







Features:
✿ High Quality Silicone Sponge Sheet:
STRONG, HIGH QUALITY RUBBER - Made of Foam Silicone Rubber sheet.
✿ Widely Application:
High and low Temperature, all kinds of ironing table, Machine, Industry,also it can be made into Mats / Pads, Strips / Bars,
Gaskets / Washers, Seals, etc..
✿ Easy to Use:
It is also easy to work with and can be conformed to any size and shape with the use of a pair of scissors or cutter, making it a
great tool for cosplays, rubber padding, props, costumes and craft tool.
✿ After-Sale Service:
Our first priority is bring happiness to our guest! If you have any quality problems with our products, please
contact us, we will give you a satisfactory reply as soon as possible.
Specification
SN TEST UNITES Testing standards Technical indicators
1 Density g.cm-3 ASTM D 1056 0.42±0.04
2 Hardness kPa ASTM D 1056 110 ± 20
3 Compression set % ASTM D 1056 @100 ≤ 5.0
4 Tensile strength MPa ASTM D412-16 ≥ 0.4
5 Elongation % ASTM D412-16 ≥ 85
6 Water absorption % ASTM D 570 ≤ 5.0
7 Environmental testing / RoHS,REACH,ELV OK
8 Flame retardant / UL94-2013 V-0
9 Low temperature bending / ASTM D 1056 -55 OK
10 Dielectric strength kV/mm ASTM D149-09 ≥ 3.5
11 Volume resistivity Ω·cm ASTM D257-14 ≥ 1.0*1014
12 Thermal conductivity W/(m·K) ASTM C518-17 0.09±0.01







Compressive stress curve

Battery Pack Sealing Self Adhesive Rubber Seal 2

Application


Battery Pack Sealing Self Adhesive Rubber Seal 3

Common Industry Applications

  • Telecommunications outdoor enclosures (environmental gasket)
  • Portable data acquisition (gaskets and cushioning)
  • Indoor lighting (dust gasket, UL 94V-0)
  • Outdoor LED lighting (weather gasket, long life, UL listed)
  • Asset tracking (environmental gasket, low compression set)
  • Instrumentation (vibration dampening)
  • Electronics (touch screen gaskets, cushioning)
Package & Delivery

Battery Pack Sealing Self Adhesive Rubber Seal 4
It is a non-dangerous good. Store it in a cool, dry place below 27°C.
