Effective Car Battery Thermal Wrap Heat Resistant Rubber Sheet IATF16949 Certified
  • Effective Car Battery Thermal Wrap Heat Resistant Rubber Sheet IATF16949 Certified
  • Effective Car Battery Thermal Wrap Heat Resistant Rubber Sheet IATF16949 Certified
Effective Car Battery Thermal Wrap Heat Resistant Rubber Sheet IATF16949 Certified

Effective Car Battery Thermal Wrap Heat Resistant Rubber Sheet IATF16949 Certified

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number Rubber 1
Product Details
Material:
High Flame Retardant Silicone Rubber(buffer Frame)
Highlight:

Heat Resistant Rubber Sheet IATF16949

,

Car Battery Thermal Wrap Heat Resistant

,

Effective Car Battery Thermal Wrap

Payment & Shipping Terms
Minimum Order Quantity
Customized
Price
Fuzhou Fuqiang Precision Co.,Ltd.
Packaging Details
pp bag+Cartons
Delivery Time
1000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000pcs/day
Product Description

Battery Wrapping Flame Hardness Shore A Barrier Films High Flame Retardant Silicone Rubber Battery Thermal Wrap

Main Features

It is used to realize buffering energy absorption between battery pack cells.

  • Refractory silicone rubber composite layer of ultra-high strength stubborn fabric makes it have high mechanical strength;
  • It can maintain solid structural integrity at high temperatures or flame, and has excellent electrical insulation;
  • Low smoke, low flame and low smoke toxicity during combustion;
  • It can be processed to ultra-thin thicknesses and has excellent flexibility.

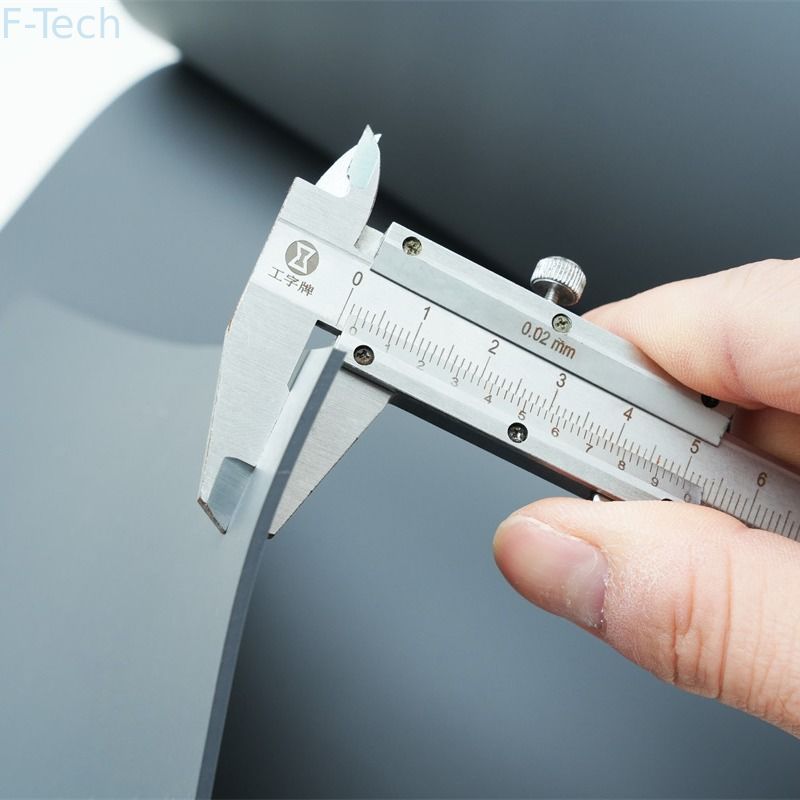

Effective Car Battery Thermal Wrap Heat Resistant Rubber Sheet IATF16949 Certified 0



Specification

The main performance parameters are shown in Table

Serial number Test items Unit Test Standard SR No.
SR 35-A SR 40-A SR 50-A SR 60-A
1 Hardness Shore A GB/T531.1-2008 35±7 40±10 50±10 60±10
2 Density g/cm3 4.3.2 0.8≤μ±3σ≤1.4 1.00≤μ±3σ≤1.51 1.00≤μ±3σ≤1.51 1.1≤μ±3σ≤1.5
3 25℃ Compression curve MPa GB/T 7757-2009 10%:0.12≤μ±3σ≤0.22 10%:0.25≤μ±3σ≤0.53 10%:0.25≤μ±3σ≤0.75 10%: 0.45≤μ±3σ≤0.80
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%:0.63≤μ±3σ≤1.77 20%: 0.95≤μ±3σ≤1.45
30%:0.45≤μ±3σ≤0.7 30%:0.68≤μ±3σ≤1.32 30%:1.20≤μ±3σ≤2.24 30%: 1.50≤μ±3σ≤2.50
4 25℃ Shear performance under pressure     Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
5 25℃ Tensile strength MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
6 -30℃ Compression curve MPa GB/T 7757-2009 10%:0.08≤μ±3σ≤.0.22 10%:0.25≤μ±3σ≤0.53 10%:0.35≤μ±3σ≤0.65 10%:0.55≤μ±3σ≤0.90
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%:0.90≤μ±3σ≤1.20 20%:1.10≤μ±3σ≤1.95
30%:0.45≤μ±3σ≤0.9 30%:0.68≤μ±3σ≤1.32 30%:1.50≤μ±3σ≤2.00 30%: 2.00≤μ±3σ≤3.95
7 -30℃ Shear performance under pressure     Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
8 -30℃ Tensile strength MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
9 60℃ Compression curve MPa GB/T 7757-2009 10%:0.12≤μ±3σ≤0.22 10%:0.25≤μ±3σ≤0.53 10%:0.35≤μ±3σ≤0.70 10%: 0.35≤μ±3σ≤0.80
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%:0.80≤μ±3σ≤1.30 20%:0.65≤μ±3σ≤1.60
30%:0.45≤μ±3σ≤0.7 30%:0.68≤μ±3σ≤1.32 30%:1.00≤μ±3σ≤2.10 30%: 1.00≤μ±3σ≤2.50
10 60℃ Shear performance under pressure     Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
11 60℃ Tensile strength MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
12 Double 85 post-aging compression curve MPa GB/T 7757-2009 10%:0.12≤μ±3σ≤0.22 10%:0.25≤μ±3σ≤0.53 10%: 0.50≤μ±3σ≤0.70 10%: 0.40≤μ±3σ≤1.90
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%: 0.90≤μ±3σ≤1.30 20%: 1.00≤μ±3σ≤3.20
30%:0.45≤μ±3σ≤0.75 30%:0.68≤μ±3σ≤1.32 30%: 1.40≤μ±3σ≤2.10 30%: 1.70≤μ±3σ≤5.50
13 Double 85 post-aging shear performance under pressure     Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
14 Double 85 post-ageing Tensile strength MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
15 Compression curve after high and low-temperature cycle MPa GB/T 7757-2009 10%:0.12≤μ±3σ≤0.22 10%:0.25≤μ±3σ≤0.53 10%: 0.45≤μ±3σ≤0.65 10%: 0.50≤μ±3σ≤2.20
20%:0.25≤μ±3σ≤0.45 20%:0.50≤μ±3σ≤0.86 20%: 0.85≤μ±3σ≤1.35 20%: 1.00≤μ±3σ≤4.00
30%:0.45≤μ±3σ≤0.7 30%:0.68≤μ±3σ≤1.32 30%: 1.30≤μ±3σ≤2.50 30%: 1.80≤μ±3σ≤6.80
16 Shear performance under pressure after high and low temperature MPa ASTM C273C /273M-16 Strength: µ-3σ≥0.8 Shear strength under pressure: µ-3σ≥0.5 Shear strength under pressure: µ-3σ≥0.2 Shear strength under pressure: µ-3σ≥0.8
Modulus: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75 Shear modulus under pressure: Min≥0.75
17 Tensile strength after high and low-temperature cycle MPa GB/T 528-2009 µ-3σ≥0.8 µ-3σ≥1.1 µ-3σ≥1.65 /
18 Flame retardant / UL94 UL94 V0(2mm) V0(t≥2mm) V0(t≥2mm) V0(t≥2mm)
V1(1≤t＜2mm) V1(1≤t＜2mm) V1(1≤t＜2mm)
HB(0.4≤t＜1mm) HB(0.4≤t＜1mm) HB(0.4≤t＜1mm)
19 Forbidden object / RoHS &REACH & ELV RoHS &REACH & ELV RoHS &REACH & ELV RoHS &REACH & ELV RoHS &REACH & ELV
20 Insulation MΩ 1000V DC 60s µ-3σ≥500 µ-3σ≥500 µ-3σ≥500 µ-3σ≥500
21 Impedance mA 2700V DC 60s µ+3σ≤1 µ+3σ≤1 µ+3σ≤1 µ+3σ≤1
22 Thermal conductivity W/(m·K) GB/T 10295-2008 µ+3σ≤0.8 µ+3σ≤0.8 µ+3σ≤0.8 µ+3σ≤0.8
23 Specific heat capacity J/(g·K) ASTM E1269-2011 µ-3σ≥0.9 µ-3σ≥0.9 µ-3σ≥0.9 µ-3σ≥0.9
24 Stress retention rate % GB/T1685-2008 ≥40 ≥40 ≥40 ≥40
25 25℃ Shear strength with double-sided adhesive MPa ASTM D1002 Min≥0.8 Min≥0.8 Min≥1.1 Min≥1.5
26 -30℃ Shear strength with double-sided adhesive MPa ASTM D1002 Min≥0.6 Min≥0.8 Min≥1.1 Min≥1.5
27 60℃ Shear strength with double-sided adhesive MPa ASTM D1002 Min≥0.6 Min≥0.8 Min≥0.6 Min≥1.5
28 Double 85 ageing shear strength with double-sided adhesive MPa ASTM D1002 Min≥0.6 Min≥0.8 Min≥1.1 Min≥1.5
29 Shear strength after high and low-temperature cycles with double-sided adhesive MPa ASTM D1002 Min≥0.6 Min≥0.8 Min≥1.1 Min≥1.5





Commercial grade 60 Shore A durometer red silicone rubber gasket sheet is a high-performance rubber compound with extraordinary resistance to extreme temperatures. Red-coloured silicone rubber gasket sheets can be done into silicone gaskets and silicone gaskets are utilized to reduce leaks between unique substrate portions in a wide range of programs. For all our 60 Shore A durometer red silicone rubber gasket sheet, we have the facilities to manufacture it to be regular gasket and washer sizes, and unique spare parts in-house, every one of that is manufactured from the highest quality silicone gasket material. Here, you could give us a call to obtain our silicone rubber gasket sheet data sheet to view the silicone rubber gasket properties and material technical specs.





Package & Delivery

Effective Car Battery Thermal Wrap Heat Resistant Rubber Sheet IATF16949 Certified 1
