EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole
  • EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole
  • EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole
  • EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole
  • EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole
  • EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole
  • EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole

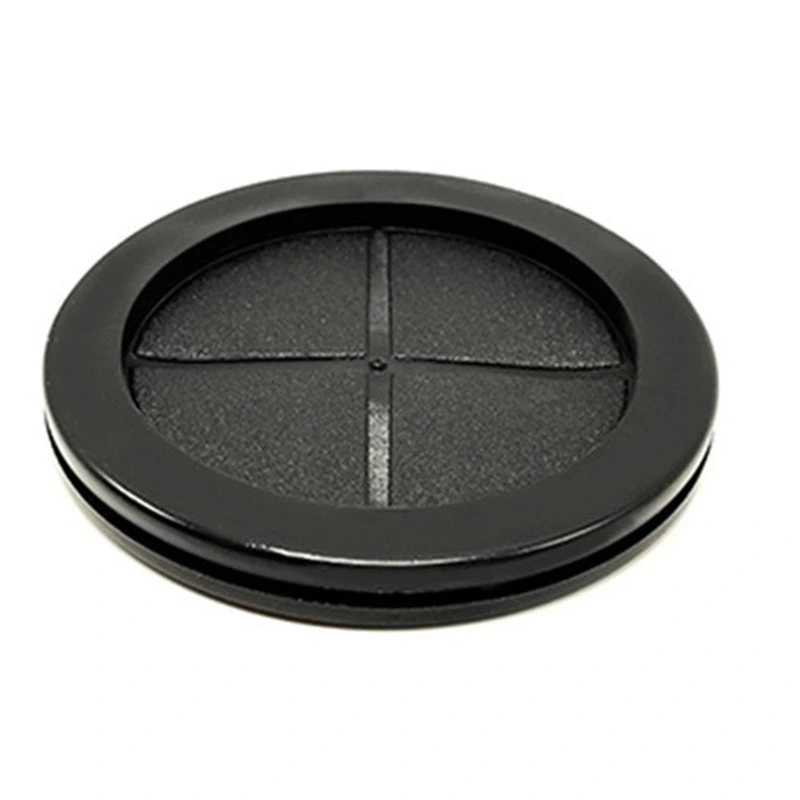

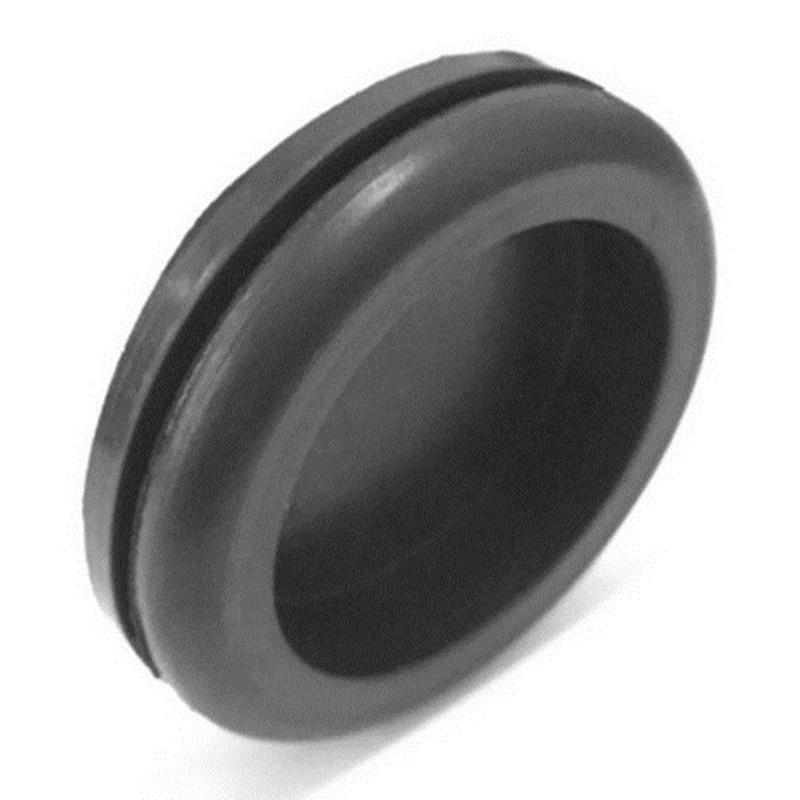

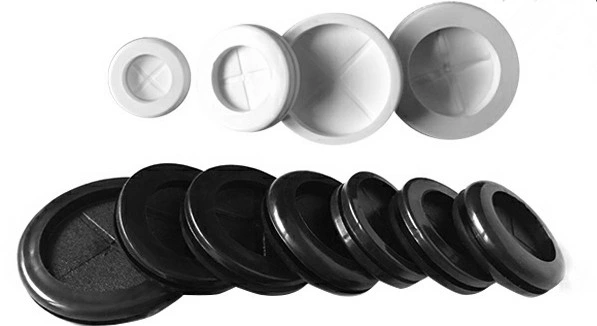

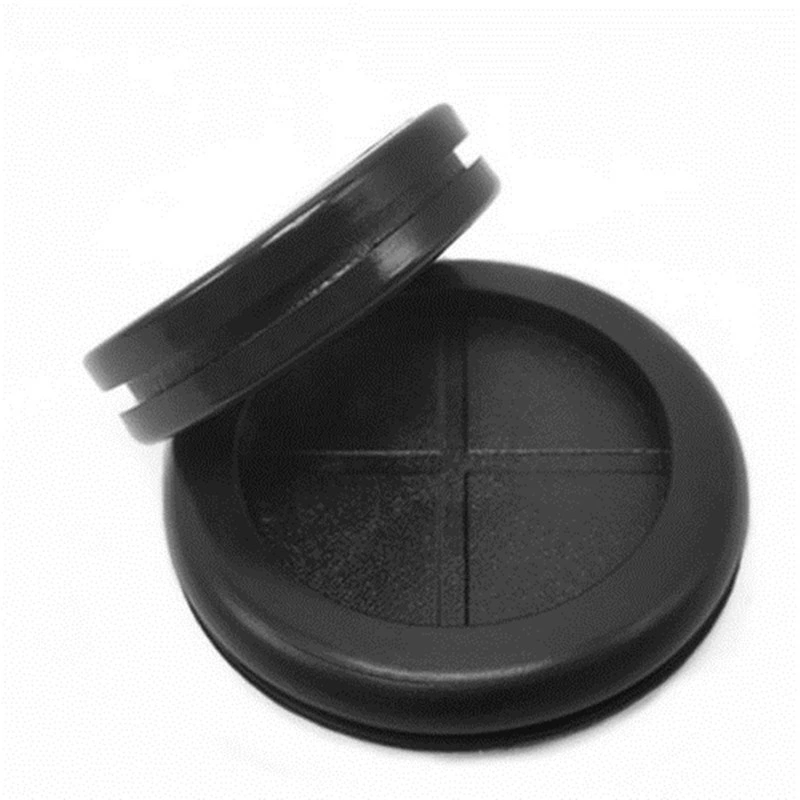

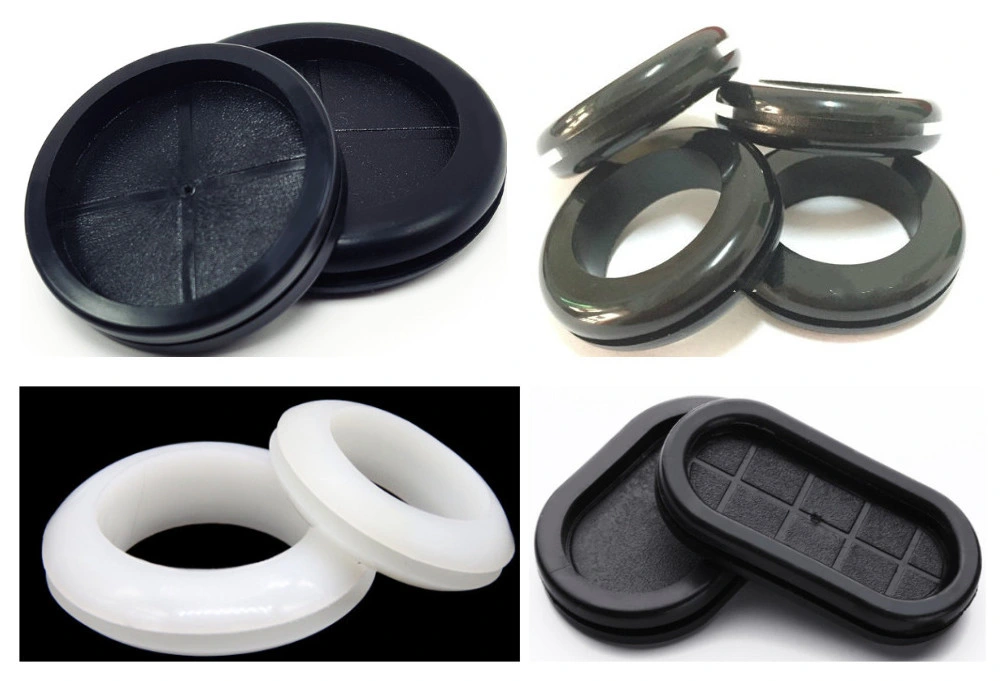

EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole

EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole

Place of Origin China
Brand Name FQ
Model Number FQ-Moldel Rubber Parts
Product Details
Type:
Moldel Rubber Parts
Shape:
Customizable
Color:
Customizable
Production Capacity:
100000pieces/Month
Packing:
Plastic Bags And Ctn
Feature:
Buffering
Sample:
Freely Offered
Service:
OEM ODM
Highlight:

10mm EPDM Silicone Rubber Blanking Grommet

,

6mm EPDM Silicone Rubber Blanking Grommet

,

Chassis Hole Silicone Rubber Blanking Grommet

Payment & Shipping Terms
Minimum Order Quantity
500
Price
custom
Packaging Details
Carton
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 pcs per month
Product Description

EPDM Silicone Rubber Blanking Grommet Close for Cable Hole 6mm-10mm Chassis Hole

Product Description

Rubber grommets is really a kind of ring with sealing and protection function.Grommets are designed to be a flexible and simple solution by easily snapping the rubber grommet directly into the drill hole on your application. Any Dimension, color, type, material can be customized according to your application environment. Color, such as white, black, red, yellow, blue, etc.. Any Material: such as: EPDM, PVC, Silicone, FKM, SBR, NBR, etc. So used for widely in all of area, such as
EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole 0EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole 1EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole 2

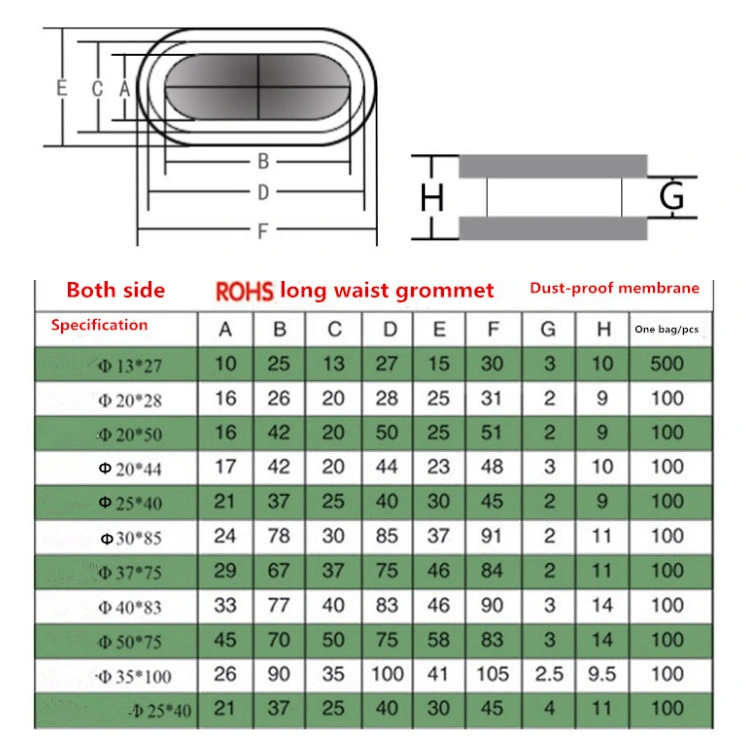

Product Description
Item Name Two sided rubber grommet
Material PVC, EPDM, NR, NBR, Silicone, FKM etc
Color black, white, red etc
Hardness 30~90ShA
Process Molding or injection
Feature anti-corrosion, fire retardant, insulation.anti high termperature .dustproof ,etc
Function Sealing and protection
Application Electronic field, Industrial machine & equipment, cylindrical surface static sealing,flat face static sealing, vacuum flange sealing, triangle groove application, pneumatic dynamic sealing ,Medical equipment industry, heavy machinery, excavators, etc.
Certification SGS, FDA, ROHS, etc
OEM Welcome
EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole 3

EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole 4
The property of our rubber grommets
1. All of rubber grommet are made of rubber material with high elasticity.
These rubber material have high elasticity,insolation, waterproof and excellent sealing.
Wear resistant, aging resistant, high/low temperature, anti-corrosion,
anti-static electricity, etc
2. Environment protection,non toxic
We insist on choosing the environmental protection material to ensure that it is tasteless, non-toxic, strong flexibility , protection ,safety and applicability
3. Factory directly sale,any dimension can be customized.
4. All of rubber material have been certificated by official authority.
5. We have complete type number of rubber grommets and enough quantity stock
EPDM Silicone Rubber Blanking Grommet Close For Cable Hole 6mm-10mm Chassis Hole 5
The different material of rubber grommet will cause different property.
EPDM/NBR/silicone/SBR/PP/PVC etc.

Items EPDM NR silicone PVC
Hardness
(Sha)		 30~85 30~90 20~85 50~95
Tensile strength
(Mpa)		 ≥8.5MPa > 20 Mpa 3~8 10~50
Elongation(%) 200~550 1000% 200~800 200~600
Specific Gravity 0.75-1.6 1.15-1.21 1.25~1.35 1.3~1.7
Temperature range -40~+120°C -50~70ºC. -55~+350°C -29°C - 65.5°C
1. the property of NR
It has good wear resistance, high elasticity, breaking strength and elongation, But in the air, it is easy to get age, and it is get sticky when it get in touch with heat, which is easy to expand and dissolve in mineral oil or gasoline, but it is resistant to strong acid, but not to Alkali . working temperature is -50~70ºC.
2. the property of EPDM
Weather ability, aging resistance, ozone resistance, chemical stability are excellent, and CFCS and a variety of refrigerants. Working temperature is -50~150
3. the property of silicone
It has excellent heat resistance, cold resistance, ozone resistance and atmospheric aging resistant.Good electrical insulation performance,The tensile strength and wear resistance are generally poor and has non- oil resistant. The working temperature is -55~250ºC
4. The property of NBR
Good oil resistance, heat resistance, abrasion resistance, solvent resistance and high - pressure oil,But it is not suitable for polar solvents, such as ketones, ozone, nitro-hydrocarbons, and chloroform. The working temperature is -40~120 ºC
5. the property of CR
It has good elasticity, wear resistance and atmospheric aging resistance. It is not afraid of violent distortion and flammability.Chemical stability. The working temperature is -40~100 ºC
6. The property of FKM
Excellent high temperature resistance,And have excellent chemical resistance, most oil and solvent (other than ketones and esters).cold resistance is not good.
