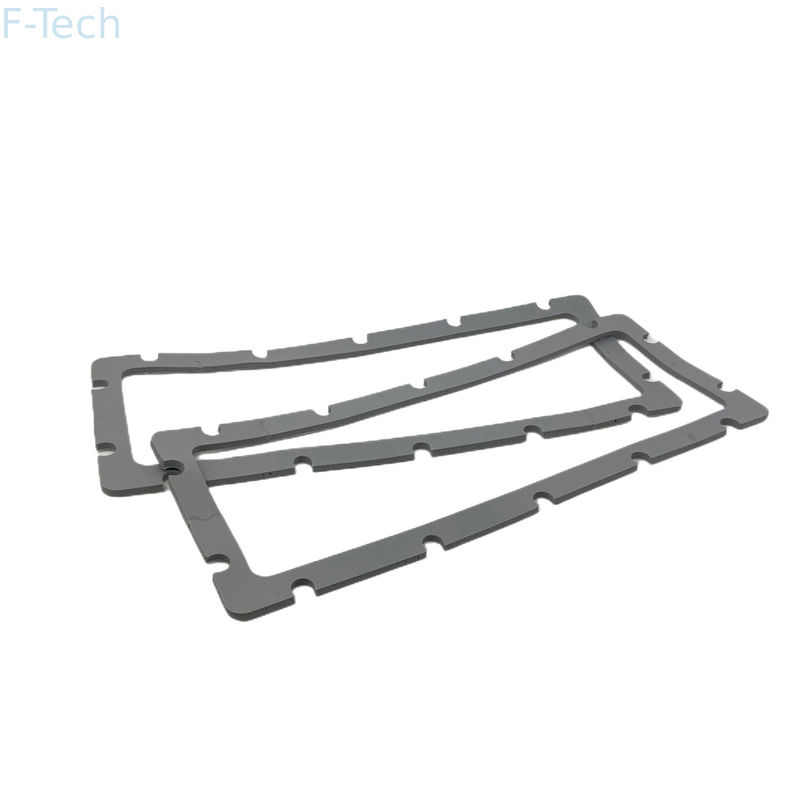

Waterproof Battery Pack Sealing Silicone Sponge Gasket Adhesive Backed
  • Waterproof Battery Pack Sealing Silicone Sponge Gasket Adhesive Backed
  • Waterproof Battery Pack Sealing Silicone Sponge Gasket Adhesive Backed
Waterproof Battery Pack Sealing Silicone Sponge Gasket Adhesive Backed

Waterproof Battery Pack Sealing Silicone Sponge Gasket Adhesive Backed

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number BPS-02
Product Details
Material:
Customized
Sized:
Customized
Tape:
Double-sided Adhesive
Requirements For Flame Retardant Grade:
Customized
Appearance Requirements:
Smooth Surface, No Damage, Scratches, Lack Of Material, Obvious Defects And Other Defects
Highlight:

Waterproof Battery Pack Sealing

,

silicone sponge gasket Adhesive Backed

,

Battery Pack Sealing Adhesive Backed

Payment & Shipping Terms
Minimum Order Quantity
Customized
Price
USD 45/PC
Packaging Details
pp bag+Cartons
Delivery Time
1000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000pcs/day
Product Description

Battery Pack Sealing Gasket Pack Seal Silicone Sponge Adhesive Backed Waterproof Foam Rubber Foam Sheets Insulation Roll

Products Description
  1. Grade: silicone foam material meets RoHS grade certifications.
  2. Sample cost: if be our stock size sample, be free;if be a new one, the sample cost depends on the product.
  3. Sample time: 1 day for stock sample;5-7 days for customized sample.
  4. Sample quantity: below 2 pcs.
  5. Surface: smooth surface.
  6. Extra service: cut and punch into the required shape and size.

F-TECH-FSR370 is a low-stress silicone foamed silicone material. It has a low density and excellent resistance to compression set. Compared with traditional carbon-based foam materials, the material has excellent high and low-temperature resistance (-55-200 °C), high flame retardant (V-0), extremely low smoke density and smoke toxicity. In addition, the material has excellent ageing and weather resistance, making it ideal for all types of shock absorption, cushioning, support, sound insulation, protection, insulation and fire protection.



Main Features



  1. Excellent flame retardancy and fire resistance;
  2. Excellent compression set resistance and creep resistance;
  3. Excellent heat and cold resistance, continuous operation from -55°C to 200°C;
  4. Good insulation, and green environmental protection



Specification
SN TEST UNITES Testing standards Technical indicators
1 Density g.cm-3 ASTM D 1056 0.37±0.04
2 Hardness kPa ASTM D 1056 75 ± 20
3 Compression set % ASTM D 1056 @100℃ ≤ 5.0
4 Tensile strength MPa ASTM D412-16 ≥ 0.3
5 Elongation % ASTM D412-16 ≥ 80
6 Water absorption % ASTM D 570 ≤ 5.0
7 Environmental testing / RoHS,REACH,ELV OK
8 Flame retardant / UL94-2013 V-0
9 Low-temperature bending / ASTM D 1056 -55℃ OK
10 Dielectric strength kV/mm ASTM D149-09 ≥ 2.5
11 Volume resistivity Ω·cm ASTM D257-14 ≥ 1.0*1014
12 Thermal conductivity W/(m·K) ASTM C518-17 0.08±0.01
Temperature range
-50℃~+280℃
Plasticity
170-400
Density g/㎤
1.07-1.22
Hardness(shore A)
30-90
Stretching rate
≥0.00
Tensile strength(Mpa)
≥60
Elongation at break(%)
≥(150-700)
Tear strength(KN/M)
≥20.0
Tear permanent deformation(%)
≤5

Features
Smooth surface, uniform foaming hole, chemically stable, weak acid and alkali resistance, excellent heat resistance,inflaming retarding,anti-UV, anti-ageing, Meet ISO, REACH, ROHS, Food Grade,94V0, LFGB and other related food medical certifications.
Note
Higher temperature-resistant materials can be customized. And different hardness, different numerical value



Property
High or low-temperature resistance, oil and fuel resistance, weathering resistance, O zone resistance etc.
Shape
According to your requirement
Color
Any color is available, accoring to your requirements.
Material
NBR,CR,SBR,EPDM,IIR,NR,EP,Silicone,etc.
Hardness
30-90ShoreA
Delivery
within 10 days
Packing
Plastic bag&carton box or according to your requirements.
Application
Electronic field,industrial machine&equipment,house-hold appliance,
telecommunication,automobile,medical equirpment industry etc.
Compressive stress curve

Waterproof Battery Pack Sealing Silicone Sponge Gasket Adhesive Backed 0

Package & Delivery

Waterproof Battery Pack Sealing Silicone Sponge Gasket Adhesive Backed 1
It is a non-dangerous good. Store it in a cool, dry place below 27°C.
