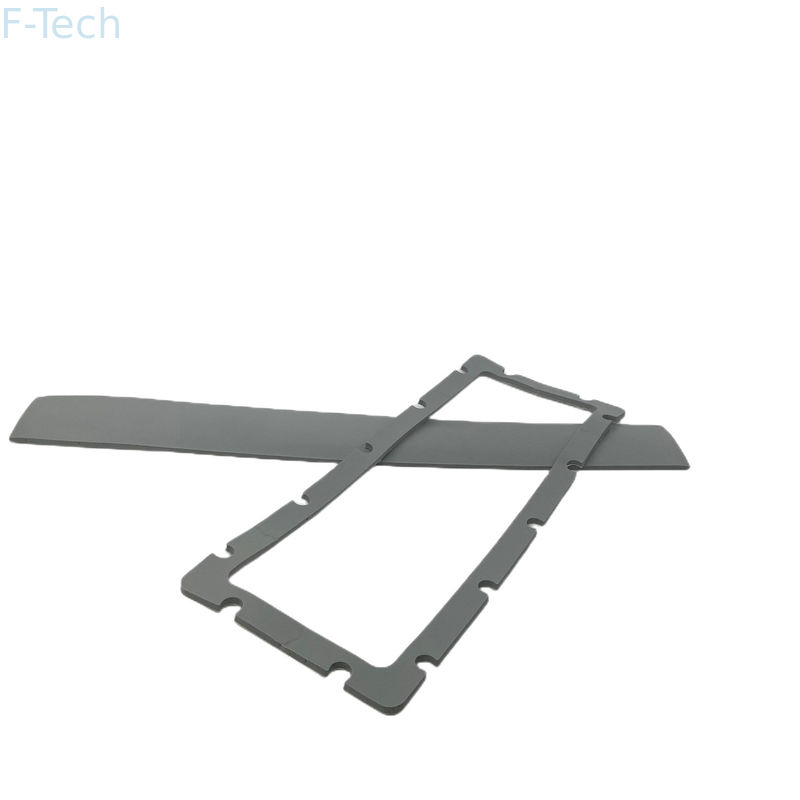

Wear Resistance Silicone Sealing Gasket Battery Seals Smooth Surface
  • Wear Resistance Silicone Sealing Gasket Battery Seals Smooth Surface
  • Wear Resistance Silicone Sealing Gasket Battery Seals Smooth Surface
Wear Resistance Silicone Sealing Gasket Battery Seals Smooth Surface

Wear Resistance Silicone Sealing Gasket Battery Seals Smooth Surface

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number BPS-02
Product Details
Material:
Customized
Sized:
Customized
Tape:
Double-sided Adhesive
Requirements For Flame Retardant Grade:
Customized
Appearance Requirements:
Smooth Surface, No Damage, Scratches, Lack Of Material, Obvious Defects And Other Defects
Highlight:

Wear Resistance Silicone Sealing Gasket

,

Wear Resistance Battery Seals

,

Silicone Sealing Gasket smooth surface.

Payment & Shipping Terms
Minimum Order Quantity
Customized
Price
USD 45/PC
Packaging Details
pp bag+Cartons
Delivery Time
1000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000pcs/day
Product Description



Products Description

Wear Resistance Silicone Sealing Gasket Battery Seals Smooth Surface 0

F-TECH-FSR370 is a low-stress silicone foamed silicone material. Compared with traditional carbon foaming materials, this material has excellent high and low-temperature resistance (-60-200 ℃), high flame retardant (V-0), and extremely low smoke concentration.


In addition, the material is resistant to ageing and has excellent weather resistance, it is an ideal material for shock absorption, cushioning, sound insulation, protection, insulation, and fire prevention
Main Features



  1. Excellent flame retardancy and fire resistance;
  2. Excellent compression set resistance and creep resistance;
  3. Excellent heat and cold resistance, continuous operation from -55°C to 200°C;
  4. Good insulation, and green environmental protection
Specification
SN TEST UNITES Testing standards Technical indicators
1 Density g.cm-3 ASTM D 1056 0.42±0.04
2 Hardness kPa ASTM D 1056 110 ± 20
3 Compression set % ASTM D 1056 @100℃ ≤ 5.0
4 Tensile strength MPa ASTM D412-16 ≥ 0.4
5 Elongation % ASTM D412-16 ≥ 85
6 Water absorption % ASTM D 570 ≤ 5.0
7 Environmental testing / RoHS,REACH,ELV OK
8 Flame retardant / UL94-2013 V-0
9 Low temperature bending / ASTM D 1056 -55℃ OK
10 Dielectric strength kV/mm ASTM D149-09 ≥ 3.5
11 Volume resistivity Ω·cm ASTM D257-14 ≥ 1.0*1014
12 Thermal conductivity W/(m·K) ASTM C518-17 0.09±0.01





Compressive stress curve

Wear Resistance Silicone Sealing Gasket Battery Seals Smooth Surface 1

Application

Wear Resistance Silicone Sealing Gasket Battery Seals Smooth Surface 2

Package & Delivery

Wear Resistance Silicone Sealing Gasket Battery Seals Smooth Surface 3
It is a non-dangerous good. Store it in a cool, dry place below 27°C.

Our Advantages:































1.No tooling charge.
2.Small quantity is accepted.
3.Nontoxic,won't bring in impurities.
4.You can order ahead of time.
5. Available in various sizes and colors.
6. Rapid development line, from drawing, tool design to mold support and samples.
7. Customer's design and specifications are accepted.
8. We can provide OEM service with your own logo.
9. 100% manufacturer with more than 13years' experience!
We strive to in product quality, price and delivery cycle to achieve perfect balance, to become your most reliable rubber parts partner !
