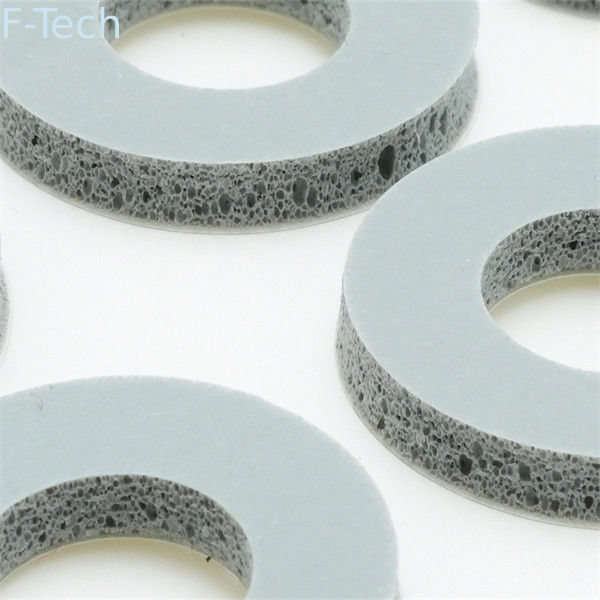

Fire Retardant Battery Pack Sealing Auto Parts Silicone O Ring Seal Gaskets
  • Fire Retardant Battery Pack Sealing Auto Parts Silicone O Ring Seal Gaskets
  • Fire Retardant Battery Pack Sealing Auto Parts Silicone O Ring Seal Gaskets
  • Fire Retardant Battery Pack Sealing Auto Parts Silicone O Ring Seal Gaskets

Fire Retardant Battery Pack Sealing Auto Parts Silicone O Ring Seal Gaskets

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number X RING
Product Details
Material:
EDPM/PU
Sized:
Customized
Requirements For Flame Retardant Grade:
Customized
Appearance Requirements:
Smooth Surface, No Damage, Scratches, Lack Of Material, Obvious Defects And Other Defects
Style:
Mechanical Seal
Product Name::
Reinforced Main Oil Seal
Temperature:
-40℃~+120℃
Pressure::
400bar
Color:
Brown+black
Hardness:
30-90 Shore A
Product Name:
O Ring,Custom K Type Ring Rubber Gasket Seal,silicone Rubber Seal,rubber Fabric Combined Seal Ring V-ring Seal
Feature:
Solvent,Oil Resistance,abrasion,Eco-friendly
Certification:
ISO9001,SGS,ROHS,REACH
Type:
Customized Product,rubber Fabric Combined Seal Ring
Pressure:
60Mpa,0~45Mpa,6bar
Oem:
Available,OEM Is Welcomed,Accept
Package:
PE+Carton,PE Plastic Bags,Inner Plastic Bag/outside Carton/wooden Pallets,standard Export Packing Or At Per You Request
Item:
Custom U Ring Shape Engine Nbr Rubber Oil Seals
Sample:
Available,Freely,Provide Free Samples
Service:
OEM
Highlight:

Fire Retardant Battery Pack Sealing

,

Fire Retardant Silicone O Ring Seal

,

Auto Parts Silicone O Ring Seal

Payment & Shipping Terms
Minimum Order Quantity
3000PCS
Price
USD 1.5/PC
Packaging Details
Roll package and carton outside, or as customer's requirements
Delivery Time
10000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
10000pcs/day
Product Description

Rubber Seal Ring Silicone Foam Seal Custom Flame Retardancy Auto Parts O Ring Seal Silicone Gaskets

Description
High-Performance Silicone Gaskets
With their ability to withstand temperatures as high as 450°F and as low as -75°F, gaskets made from silicone rubber are highly versatile. You can find these gaskets used in a number of applications, including food processing, medical equipment, automobile engines, aerospace, pharmaceutical, energy, mobile technologies, and more. Silicone gaskets also offer excellent electrical insulation, durability, resistance to high pressures, and are flame retardant. Available in a range of colour options, these gaskets are also commonly chosen for their aesthetic value.

Silicone foam insulation has emerged as a superior solution for battery protection and thermal management systems in the rapidly evolving field of new energy vehicles (NEVs). This article delves into the inherent advantages of silicone foam insulation, highlighting its unique capabilities and why it surpasses traditional materials. By understanding its benefits, we can explore its critical role in enhancing NEV battery performance, safety, and longevity.



Excellent Resilience:
Silicone foam insulation boasts exceptional resilience, making it an ideal choice for battery protection. Experimental data reveals that even after undergoing 8,000 cycles of compression, the material experiences minimal deformation, with less than 5% change. This outstanding rebound property ensures long-term effectiveness and reliability, safeguarding NEV batteries throughout their operational lifespan.



Comprehensive Prtection:
Silicone foam insulation provides more than just insulation. It offers additional advantages, including dustproofing, waterproofing, heat dissipation, and shock absorption. These properties are pivotal for NEV battery protection systems, shielding the battery pack from external contaminants, preventing moisture ingress, efficiently managing heat generated during operation, and minimizing the impact of vibrations and shocks. Such comprehensive protection contributes to the overall performance, safety, and durability of NEV batteries.



Unyielding Performance under Extreme Conditions:
Silicone foam insulation undergoes rigorous testing to evaluate its performance under harsh environmental conditions. Experimental data from stress relaxation tests conducted at 85°C and 85% relative humidity for 1,000 hours demonstrates that the material exhibits a stress relaxation rate of only 20.98%. This exceptional result attests to its ability to maintain mechanical integrity and provide consistent performance, even in demanding situations. NEV batteries can rely on silicone foam insulation to deliver unwavering protection, regardless of challenging operating conditions.



Superior Compression Resistance:
Silicone foam insulation has excellent resistance to crushing and retains its shape and performance even after extensive use. The material exhibits a consistently low compression set, ranging from 0.34% to 0.72% in a 10,000-belt 1 million compression cycle test, ensuring its long-lasting durability and effectiveness in protecting new energy vehicle batteries.

These results highlight the material's resilience and ability to maintain its shape and performance, even after prolonged use. NEV batteries benefit from the long-lasting durability provided by silicone foam insulation.



Minimal Water Absorption:
Silicone foam insulation exhibits an impressively low water absorption rate of only 0.266%. This characteristic is crucial in NEV battery protection, as it ensures the material remains stable and unaffected by moisture. The low water absorption rate prevents any adverse effects on the battery pack's performance, even in humid environments. It further reinforces the material's suitability for NEV applications.

As the NEV industry continues to advance, silicone foam insulation emerges as the optimal choice for battery protection and thermal management systems. Its exceptional resilience, comprehensive protection features, unyielding performance under extreme conditions, superior compression resistance, and minimal water absorption set it apart from traditional materials. Silicone foam insulation plays a pivotal role in enhancing NEV battery performance, safety, and longevity. Its numerous advantages make it a compelling solution that should be widely adopted in the NEV industry, driving innovation and ensuring the continued success of new energy vehicles.







Main Features
  • 1 High quality, high strength, high tear resistance.
  • 2.It has high flexible,eco-friendly,durable, peroxide-cured,good stability
  • 3.Easily re-processing, like sealing, jointing, bending etc.







Specification





SN TEST UNITES Testing standards Technical indicators
1 Density g.cm-3 ASTM D 1056 0.37±0.04
2 Hardness kPa ASTM D 1056 75 ± 20
3 Compression set % ASTM D 1056 @100 ≤ 5.0
4 Tensile strength MPa ASTM D412-16 ≥ 0.3
5 Elongation % ASTM D412-16 ≥ 80
6 Water absorption % ASTM D 570 ≤ 5.0
7 Environmental testing / RoHS,REACH,ELV 合格
8 Flame retardant / UL94-2013 V-0
9 Low-temperature bending / ASTM D 1056 -55℃合格
10 Dielectric strength kV/mm ASTM D149-09 ≥ 2.5
11 Volume resistivity Ω·cm ASTM D257-14 ≥ 1.0*1014
12 Thermal conductivity W/(m·K) ASTM C518-17 0.08±0.01





Common Causes of O-Ring Failure and Prevention Methods

O-ring failure is often caused by a combination of factors including improper installation, allowing for too much or too little compression in the gland design, inadequate lubrication, abrasion, or using an O-ring seal that is the incorrect size or type of elastomer for your application. Here are a few common sources of rubber oring failure and what you can do to prevent issues.

Abrasion

Abrasion is a common cause of o ring failure and can result from an improper finish of the surface in dynamic contact with the O-ring. If the surface around the O-ring is too abrasive, or even too smooth, the surface will be unable to hold lubricant. Issues with O-ring abrasion can also occur when a system fluid is not providing proper lubrication, the system fluid contains abrasive particles, or the operating environment involves excessive temperatures.

Solutions to this problem include adding a proper surface finish and adequately lubricating the O-ring to reduce friction and the risk of wear over time. Another way to prevent abrasion caused by excessive temperatures is to choose an elastomer that is designed to tolerate the operating temperatures where the O-ring is going to be installed.

Also, check your system fluid regularly for contamination and to ensure that it provides enough lubrication for the O-ring and type of elastomer. If you continue to experience issues, try using a rubber o ring made from an elastomer that provides more abrasion resistance or that is internally lubricated.

Excessive Swelling

Swelling of the O-ring is caused by the absorption of surrounding fluids. The o ring will continue to swell past the appropriate point if the seal materials are not compatible with the system environment including temperature and fluid type. O-ring swell can eventually lead to issues such as land fill, extrusion and loss of sealing.

Compression Set

A compression set is the most common cause of O-ring failure. It is caused when the integrity of the seal line is affected by an improper amount of seal squeeze. Typically, an O-ring will return to its original shape when the cross-section is compressed but when a rubber Oring is stretched, it reduces the cross-section and turns the O-ring into a flat oval, which significantly decreases its sealing ability.

This happens because of several conditions, including the O-ring being made with inherently poor compression set properties. It can also be caused by improper gland design, excessive temperature, swelling, or over-tightening. Using fluids that are incompatible with your elastomer can also cause compression and O-ring failure.

By inspecting your O-rings for effective properties before use, you can prevent this condition. You can also reduce the operating temperature and check for any built-up heat at the seal interface. Use low-set material when possible and make sure the elastomer is compatible with your application temperature and fluids.



Compare & Contrast: Silicone vs. EPDM

Silicone and EPDM are similar in many ways, and the two materials offer a variety of similar characteristics. Both offer good resistance to weathering, UV exposure, and ageing, making them suitable for outdoor applications. Silicone and EPDM also exhibit high ozone resistance and an ability to remain flexible in low temperatures.

However, silicone provides far greater high-temperature resistance. Unlike EPDM, silicone will maintain its stability and physical properties in temperatures as high as 450°F (232°C).

Proper Lubrication Helps Prevent O-Ring Failure

Rubber O-rings, when not properly lubricated, can fail due to abrasion or pinching. Using an oil- or grease-based lubricant helps protect the surface of the O-ring and can prevent the degradation of the elastomer material. This will prevent failure and help extend the life of your O-ring.



Package & Delivery

Fire Retardant Battery Pack Sealing Auto Parts Silicone O Ring Seal Gaskets 0
It is a non-dangerous good. Store it in a cool, dry place below 27°C.
