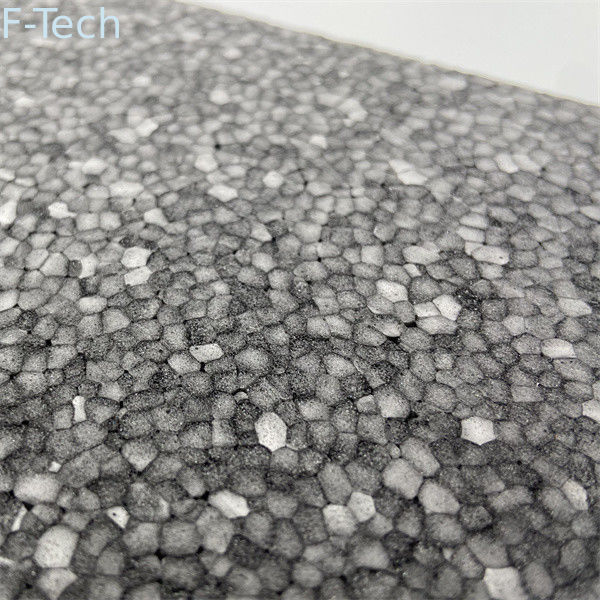

Customized High Tensile 6mm Epp Foam Sheets battery insulation material
  • Customized High Tensile 6mm Epp Foam Sheets battery insulation material
  • Customized High Tensile 6mm Epp Foam Sheets battery insulation material
  • Customized High Tensile 6mm Epp Foam Sheets battery insulation material

Customized High Tensile 6mm Epp Foam Sheets battery insulation material

Place of Origin China
Brand Name FQ
Certification IATF16949
Model Number EPP 01
Product Details
Application:
Solar System,EV,Power Bank,E-bike,home Use/solar System/energy Store
Size:
Prismatic
Product Name:
Battery Energy System,batteries Lithium Ion High Capacity,Battery Management System
Surface:
Smooth Surface
Packing:
Carton, Pallet, Loose Load
Color:
Customized
Highlight:

High Tensile 6mm Epp Foam Sheets

,

Customized battery insulation material

,

High Tensile Battery Insulation Material

Payment & Shipping Terms
Minimum Order Quantity
Customized
Price
Fuzhou Fuqiang Precision Co.,Ltd.
Packaging Details
pp bag+Cartons
Delivery Time
1000 pcs/ days
Payment Terms
L/C, T/T, D/P
Supply Ability
1000pcs/day
Product Description

Battery Thermal Management System Compressive Pad Close Cell Foam Tensile Elongatio Insulation Expanded Polystyrene Foam

Description



EPP (Expanded polypropylene) is a multi-functional closed-cell bead foam that has a substantial number of uses and applications. It is lightweight, durable, and recyclable besides providing optimal energy management.

Some of the primary applications of EPP foam include:
  • Industrial packaging
  • Automotive parts
  • Logistics and wrapping
  • Shipbuilding
  • Food preservation
  • Waterproofing
  • Lightweight constructions
  • Furniture and design
  • Suitable for a wide range of foam fabrication processes

Features





  1. Light-weight, waterproof, Antiflaming and self-extinguishing, etc
  2. Sound insulation, heat insulation, noise absorption, heat preservation and anti-corrosion
  3. Tough, rigid with a high impact strength, not easy to age and can keep its colour for a long time
  4. Easy to clean and maintain
  5. Environmental-friendly green healthy materials





Specification

The main performance parameters are shown in Table

PHYSICAL PROPERTIES * TEST METHOD UNITS TESTED DENSITIES
g/l 20 30 40 50 60 80 100
TENSILE STRENGTH ISO 1798 DIN 53571 kPa 270 450 560 670 760 960 1150
TENSILE ELONGATION ISO 1798 DIN 53571 % 21 20 19 18 17 15 13
COMPRESSIVE STRENGTH ISO 844 kPa
25% STRAIN DIN 53421   80 150 210 275 340 500 700
50% STRAIN Test speed   150 200 300 370 475 700 960
75% STRAIN 5 mm/min   350 460 600 800 1000 1600 2300
COMPRESSION SET 25% STRAIN 22H-23°C ISO 1856 C Stabilizing 24H % 13.5 12.5 12.0 12.0 11.5 11.5 11.5
stauchhArte ISO 3386 40% strain kPa 80 105 125 140 150 170 185
BURNING RATE FMVSS 302
ISO 3795
sample thickness
12.5 mm
mm/min 100 80 60 50 40 30 25



Application

EPP is widely utilised by automotive manufacturers because of its performance benefits for energy management, lightweight, enhanced functionality, durability and recyclability. Applications include seating, bumpers, stowage systems, door panels, pillars, floor levellers, parcel shelves, headrests, tool kits, sun visors and myriad filler parts.

Reusable industrial packaging, known as dunnage, is frequently made from EPP due to its durability and its inherent ability to absorb energy in transit. EPP is used increasingly in furniture, toys such as model aircraft and other consumer products due to its versatility as a structural material and its lightweight, as well as other performance characteristics. appro colour range

EPP is approved for use in conjunction with food products. Its thermal insulation properties and structural strength make it appropriate for containers such as food delivery containers and beverage coolers and the like. EPP does not support microbial growth and can be made sterile with steam cleaning.

History

EPP was first developed in the 1970's as a result of research into new forms of polypropylene. The material's first applications were for automotive products in Japan in 1982. Demand for EPP has since increased dramatically in all regions of the world based partly on the need of automakers to improve energy management functions whilst reducing weight and improving environmental benefits. The first automotive application for EPP was for an energy-absorbing component in a bumper system. EPP is now widely utilised for numerous other automotive parts and systems, including seating and other interior components
Package & Delivery

Customized High Tensile 6mm Epp Foam Sheets battery insulation material 0
